IdeFA Navigation Extender

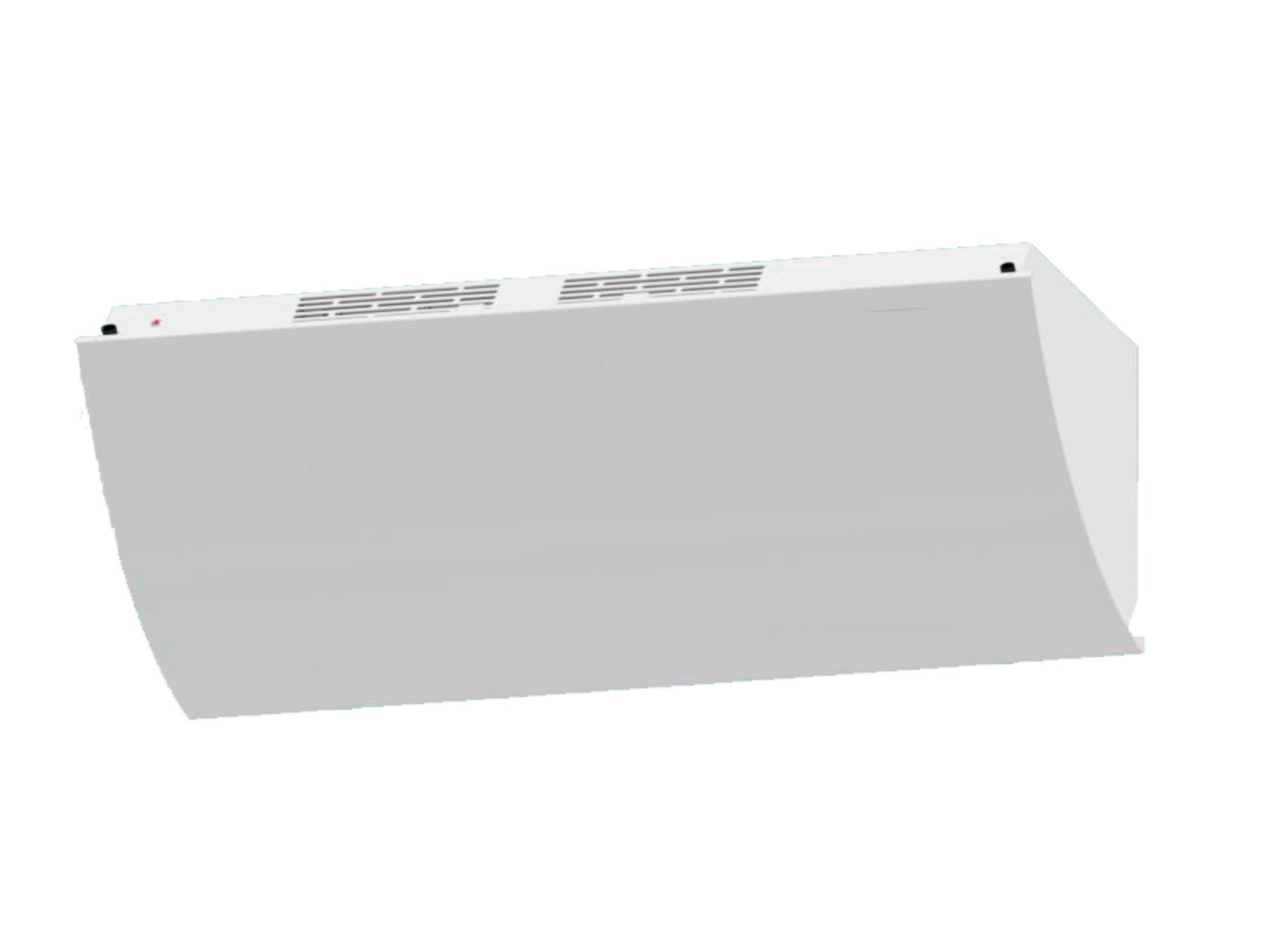

TX 250A

100-480 m³/h

TX 250A

We need to feel good - so a healthy indoor climate is good for everyone.

With decentralised ventilation, the need for sufficient ventilation is covered in most types of rooms, while it is still possible to maintain most of the heat.

TX 250A has a heat recovery of more than 80%.

• better indoor climate

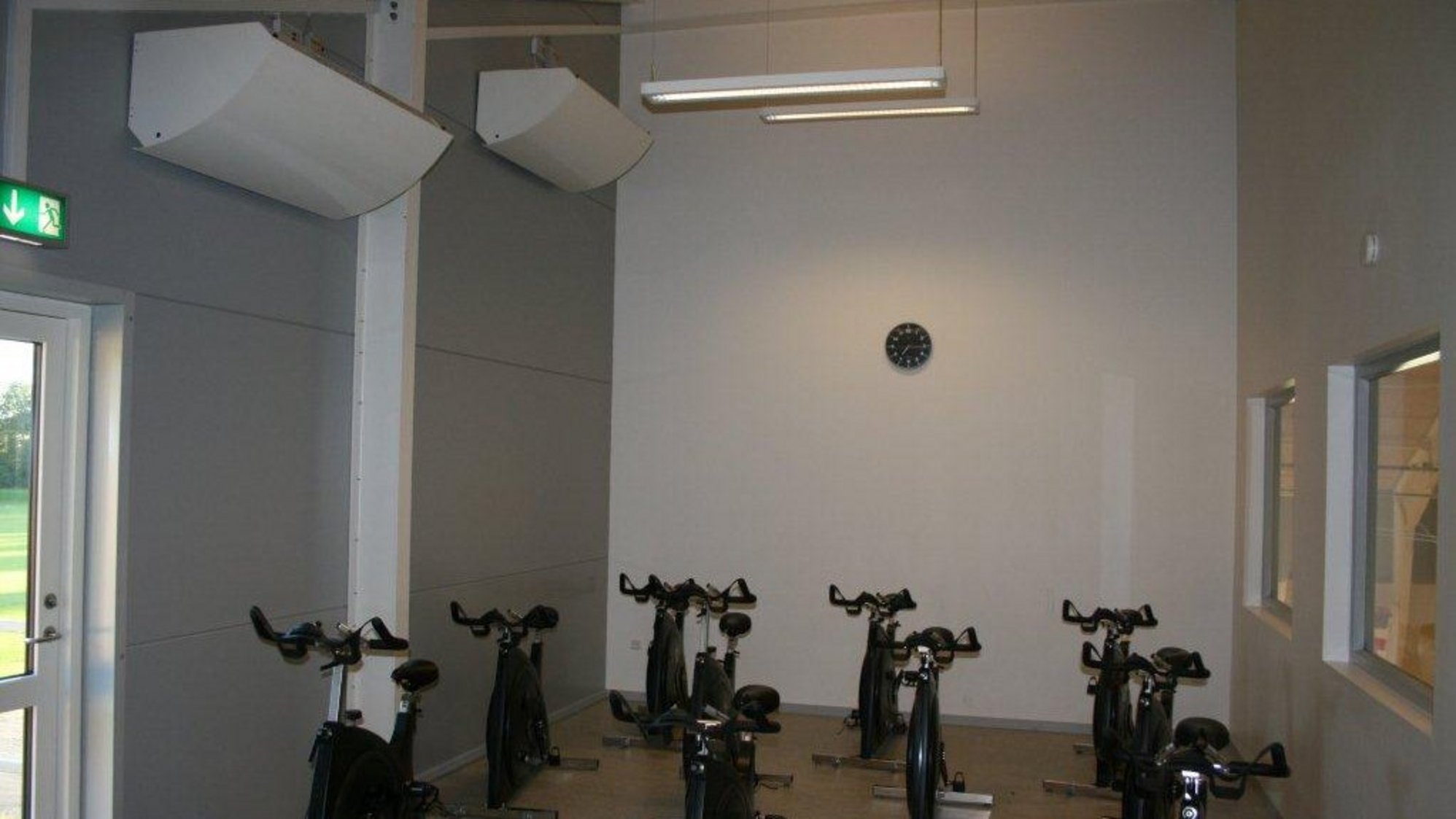

• good for fitness facilities

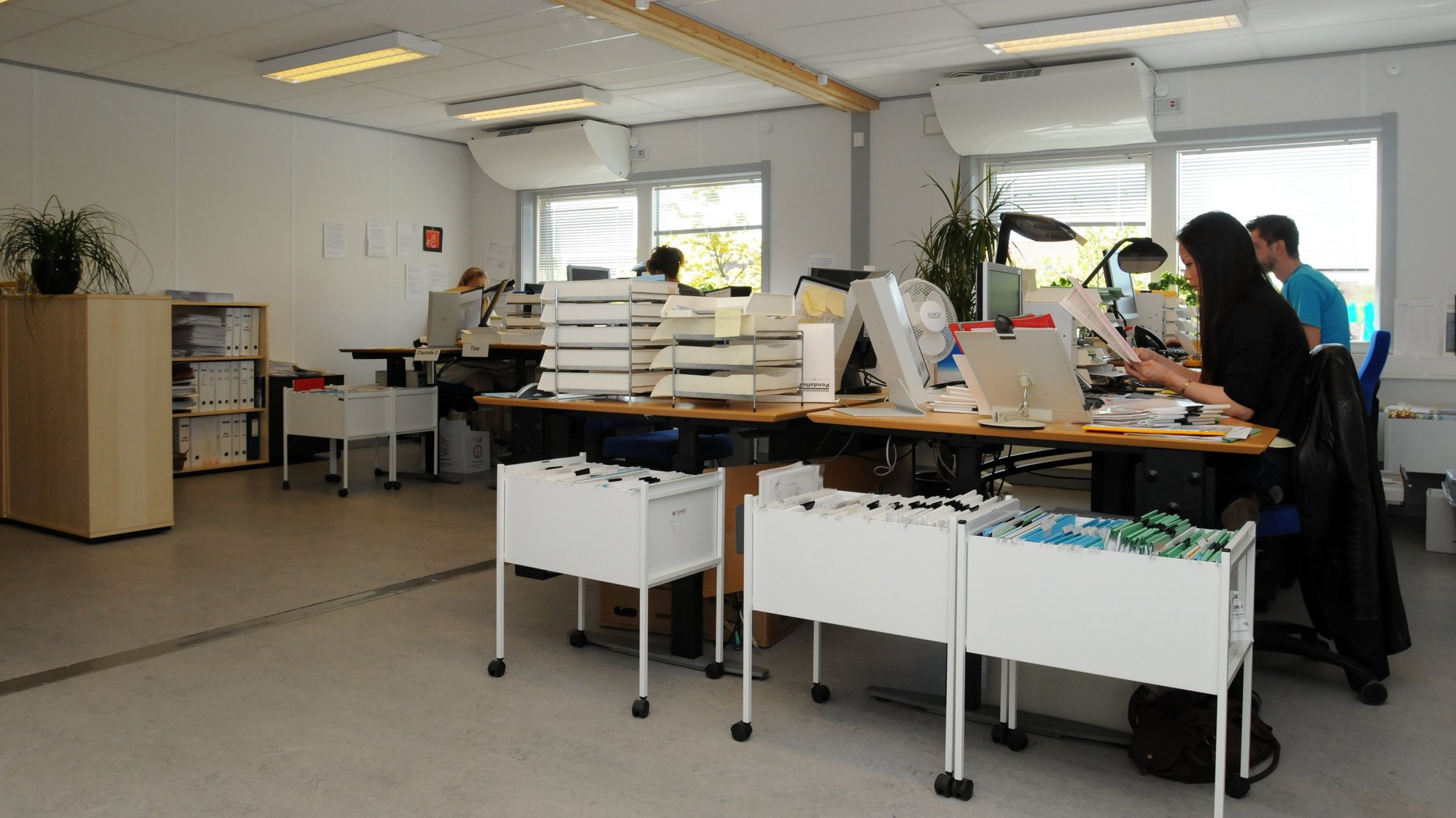

• perfect for a 50 m² office

• low energy consumption
• heat recovery from 80%
• easy assembly


It is simply too expensive to have a bad indoor climate. Productivity falls.
The learning ability and concentration are significantly reduced.


Technical data

Dimensions L x D x H 1200x595x403mm
Capacity 30 dB(A) 200 m³/h
Temperatur efficiency 84,2 % v/ 200m³/h
Capacity 35 dB(A) 250 m³/h
Temperatur efficiency 80,6 % v/ 250m³/h
Filter (standard) ePM10≥50%
Filter (option) ePM1≥55%
Weight 35 kg
Electric power connection 1 ~ 230 V/50Hz
Max. power consumption 1,2 A
Leakage Current ≤7 mA
Power cable 3g1,5 mm²
Throw (0,2 m/s) 8 m
Energy consumption at 250m³/h 28 W - 403 J/m³
Electric reheater (option) 400 W
Water reheater (option) 340 W
Duct connection 2 x Ø 160
Heat exchanger Counter flow (Al)
Color (standard) RAL 9010
Condensate drain (option) Ø16 x Ø20 mm
Condensate drain with pump (option) Ø6 x Ø8 mm
